PoE

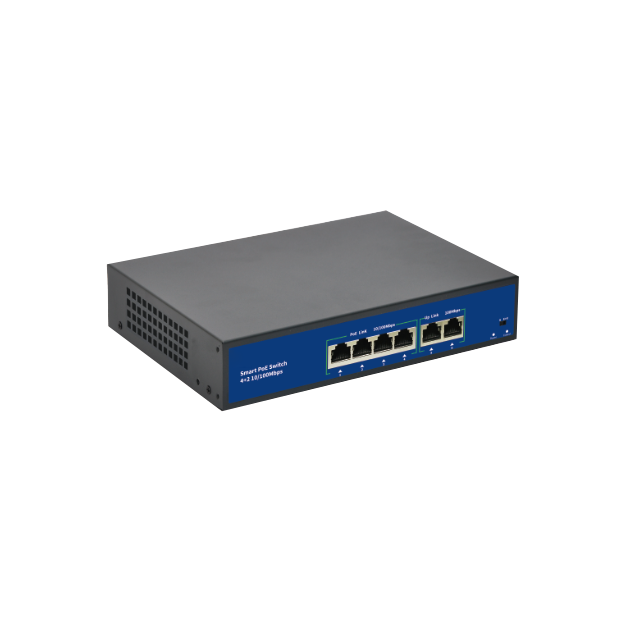

【4+2 Port PoE Network Power Supply Switch】

1. 4x10/100mbps POE port, 2x10/1000mbps UP Link port
2. Support IEEE802.3AF/AT, 250m Distance
3. Whole Power: 78W (52V 1.5A)
4. All port supported by MDI/MDIX auto flip and self negotiation
5. Supply 4x10/100Mpbs adaptive high speed forwarding data packet non-lost port
6. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
7. Each port max. Power supply reached 30W

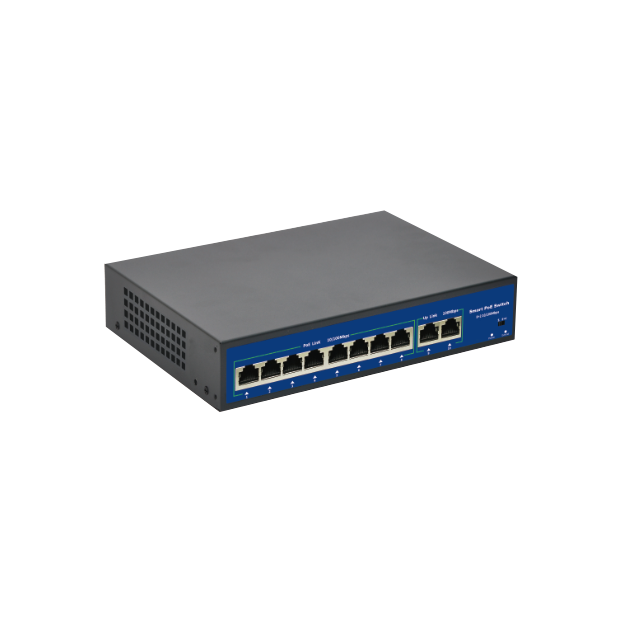

【8+2 Port PoE Network Power Supply Switch】

1. 8x10/100Mbps POE port, 2x10/1000Mbps UP Link port
2. Support IEEE802.3AF/AT , 250m Distance
3. Whole Power: 78W (52V 2.3A)
4. All port supported by MDI/MDIX auto flip and self negotiation
5. Supply 8x10/100Mpbs adaptive high speed forwarding data packet non-lost port
6. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
7. Each port max. Power supply reached 30W

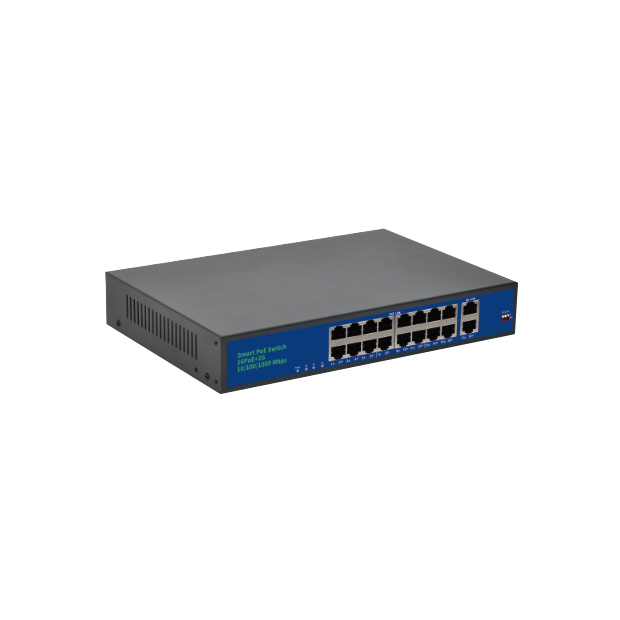

【16+2 Port PoE Network Power Supply Switch】

1. 16x10/100Mbps POE port, 2x10/1000Mbps UP Link port
2. Support IEEE802.3AF/AT , 250m Distance
3. Whole Power: 78W (52V 4.8A)
4. All port supported by MDI/MDIX auto flip and self negotiation
5. Supply 16x10/100Mpbs adaptive high speed forwarding data packet non-lost port
6. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
7. Each port max. Power supply reached 30W

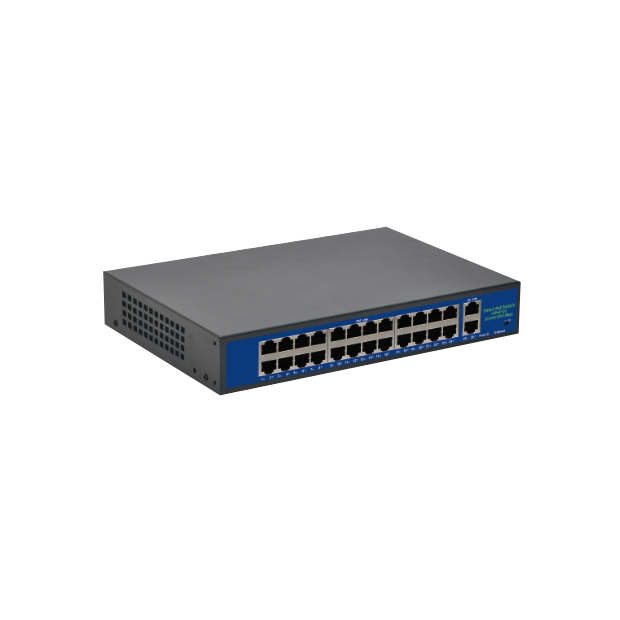

【24+2 Port PoE Network Power Supply Switch】

1. 24x10/100Mbps POE port, 2x10/1000Mbps UP Link port
2. Support IEEE802.3AF/AT , 250m Distance
3. Whole Power: 78W (52V 9.8A)
4. All port supported by MDI/MDIX auto flip and self negotiation
5. Supply 24x10/100Mpbs adaptive high speed forwarding data packet non-lost port
6. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
7. Each port max. Power supply reached 30W
