| Specification | |||
| Model | GK1620PB-G4 | ||
| Product Name | 16+2 Port PoE network power supply switch | ||
| Forwarding Mode | Store and forward | ||
| Port Bandwidth | 7.2Gbps | ||
| Signal Pin | 1｜2｜3｜6 | ||
| Power Pin | 1，2(+)｜3，6(-) | ||
| Transmission Distance | 250M | ||
| Power Supply Port | 1~16 PoE power supply and support Extend mode | ||
| Power Supply Protocol | IEEE 802.3at/af | ||
| Voltage Specifications | DC48~55V | ||
| Standard Power Supply | DC52V/250W | ||
| Network Medium | Category 5, Category 5 Super Unshielded Twisted Pair | ||
| Operating Temperature | -40°C ~ +70°C | ||
| Working Humidity | 5%~90%RH (non-condensing state) | ||
| Dimension | 270 x 180 x 46 mm | ||
| Weight | 2.5Kg | ||
| Certification | CE /FCC | ||
PoE

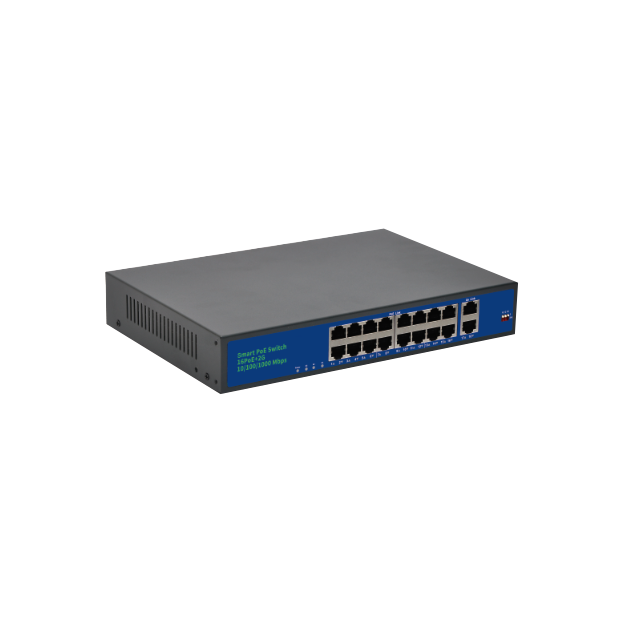

GK1620PB-G4
GK1620PB-G4
【16+2 Port PoE Network Power Supply Switch】
1. 16x10/100Mbps POE port, 2x10/1000Mbps UP Link port
2. Support IEEE802.3AF/AT , 250m Distance
3. Whole Power: 78W (52V 4.8A)
4. All port supported by MDI/MDIX auto flip and self negotiation
5. Supply 16x10/100Mpbs adaptive high speed forwarding data packet non-lost port
6. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
7. Each port max. Power supply reached 30W
1. 16x10/100Mbps POE port, 2x10/1000Mbps UP Link port
2. Support IEEE802.3AF/AT , 250m Distance
3. Whole Power: 78W (52V 4.8A)
4. All port supported by MDI/MDIX auto flip and self negotiation
5. Supply 16x10/100Mpbs adaptive high speed forwarding data packet non-lost port
6. Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
7. Each port max. Power supply reached 30W
DETAIL
