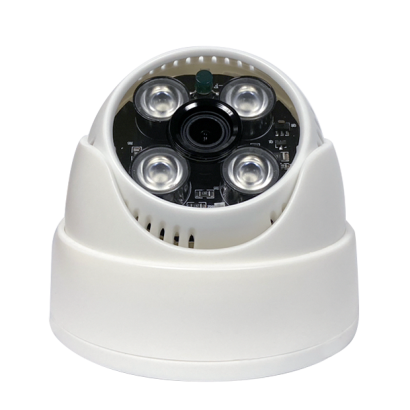

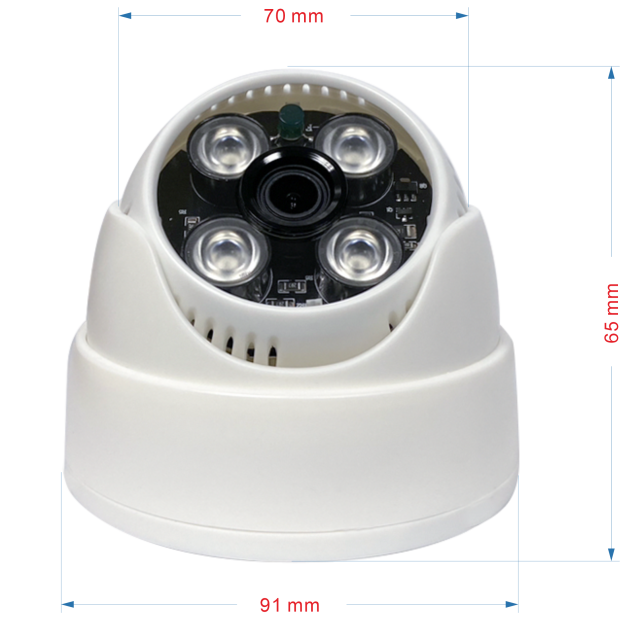

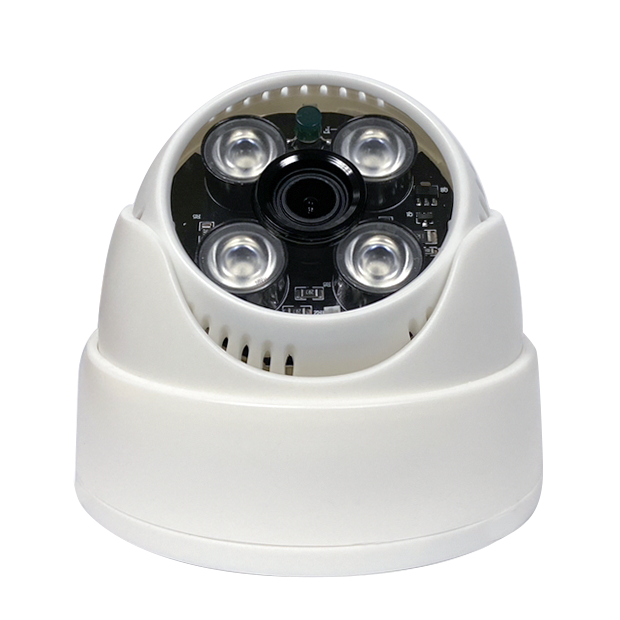

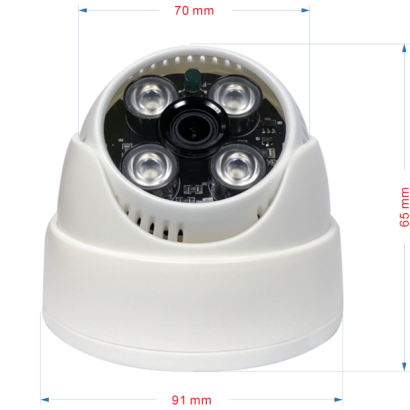

2MP Dome AHD Camera

SSV-XHD-506S30

SSV-XHD-506S30

【3.6mm Fixed Focus】

1. SONY 1/2.8” CMOS 2MP Chip
2. Coaxial cable, RJ45 twisted network wire transmission
3. UTC function
4. AHD/TVI/CVI or Analog 960H Video Output selectable
5. Built-in IR-Cut filter lens, more accurate Day/Night co-focus
6. 3D/2D noise reduction.
7. NTSC/ PAL selectable
8. Support Digital-WDR
  • 506.png
  • 506.png
DETAIL
Specification
Model SSV-XHD-506S30
Pick-up Element SONY 1/2.8“CMOS IMX 307+Nextchip NVP2441H
Resolution 25FPS/30FPS
Lens 2M Board Lens 3.6mm
Effective Pixel 1920(H)×1080(V)
Standard PAL / NTSC
Day/Night Mode External(Default)/Auto/Color/B&W
BLC Auto
Back Light Mode Off/BLC/Strong Light Suppression
White Balance ATW/AWC-SET/Indoor/Outdoor/Manual
Synchronization Internal
Scanning System 2:1 Interlaced Scan
S/N Ratio ≥ 70dB (AGC: Off)
Electronic Shutter Auto
Min. Illumination 0.001 LUX@(F1.2,AGC ON), 0LUX with IR
Video Output AHD / TVI / CVI / CVBS (Default: AHD Video Output)
Exposure Electronic Shutter/AGC/Brightness/Digital-WDR
Coaxial Cable
Transmission Distance
300 m
Twisted Cable
Transmission Distance
100 m
Language 12 Kinds of Languages as Chinese/English etc.
OSD Menu UTC Function
IR-LED Coverage Array 4 x LED IR, Around 15-20M
Operating Condition Temperature:-20°C~+60°C, Humidity:90%RH
Power Supply DC 12V ±10%
