| Specification | ||||
| Model | SSV-NVR3216-P16-V3-IQ | |||
| Decoding | ||||
| Decoding Format | Ultra 265,H.265,H.264 | |||
| Decoding Capability | Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
|||
| Decoding Capability Description |
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. | |||
| Audio Compression | G.711A, G.711U | |||
| Network | ||||
| Incoming Bandwidth | 160Mbps | |||
| Outgoing Bandwidth | 128Mbps | |||
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 | |||
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |||
| Video / Audio Input | ||||
| IP Video Input | 16ch | |||
| RCA Audio Input | 1ch | |||
| Video / Audio Output | ||||
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|||
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|||
| RCA Audio Output | 1ch | |||
| Live View Display | 1/4/6/8/9/16 | |||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |||
| Two-way Audio | ||||
| Two-way Audio | 1ch, RCA(Using the audio input and output) | |||
| Snapshot | ||||
| FTP/Schedule/Event Snapshot |
4ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) | |||
| Recording | ||||
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |||
| Synchronous Playback in Local | 16ch | |||
| Smart | ||||
| VCA Detection by IPC | Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring | |||
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) | |||
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch | |||
| Smart by IPC | All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, SIP,UMD, Traffic Monitoring | |||
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total. | |||
| SIP by NVR | 2ch | |||
| UMD by NVR | 4ch | |||
| Alarm | ||||
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||
| GUI Language | ||||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||
| Hard Disk | ||||
| SATA | 2 SATA Interfaces | |||
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) | |||
| External Interface | ||||
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface | |||
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0 | |||
| RS485 | 1 | |||
| RS232 | N/A | |||
| Alarm In | 8ch | |||
| Alarm Out | 2ch | |||
| Power Supply | AC 100~240V | |||
| PoE | ||||
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface | |||
| Max Power | Max 30 W for single port, Max 240 W in total | |||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |||
| Working Environment | ||||
| Temperature | -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) | |||
| Humidity | ≤ 90% RH (non-condensing) | |||
| Consumption | ≤ 12W (without HDD) | |||
| Dimensions | ||||
| Weight | ≤ 2.7Kg (6.0lb) (without HDD) | |||

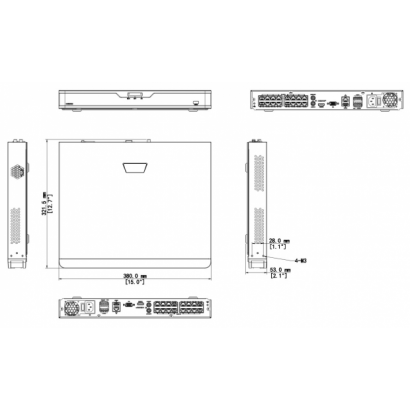

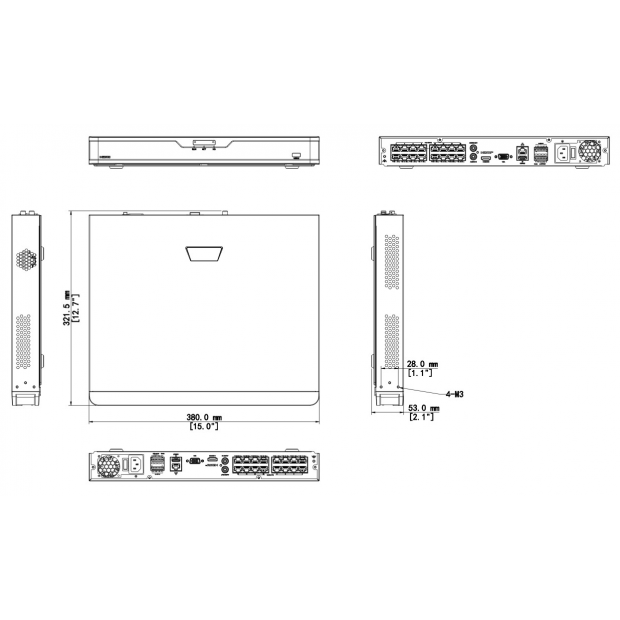

| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") | |||
| Certification | ||||
| Certification | CE; FCC; UL; RoHS; WEEE | |||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||
| FCC | Part15 Subpart B | |||
NVR

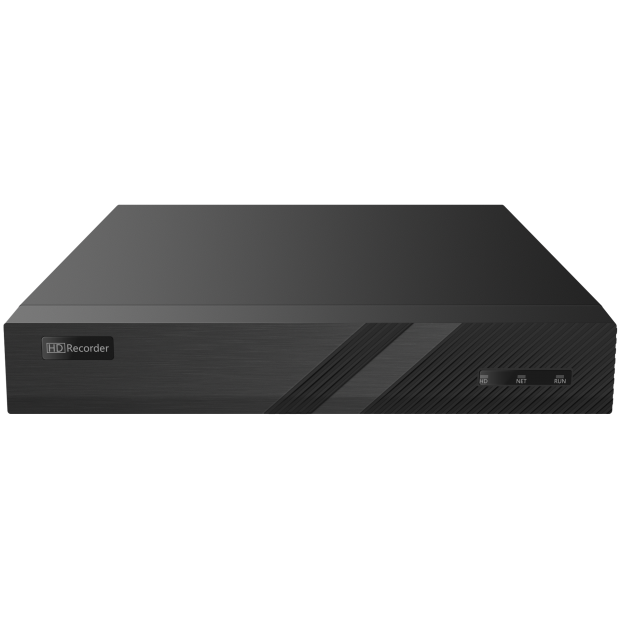

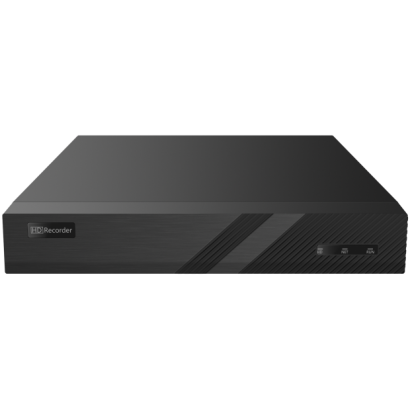

SSV-NVR3216-P16-V3-IQ
SSV-NVR3216-P16-V3-IQ
1. Support Ultra 265/H.265/H.264 video formats.
2. 16 channel input.
3. Plug & Play with 16 independent PoE network interfaces.
4. Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution.
5. VGA and HDMI simultaneous output.
6. Up to 12 Megapixels resolution recording.
7. ANR technology to enhance the storage reliability when the network is disconnected.
8. Support cloud upgrade.
2. 16 channel input.
3. Plug & Play with 16 independent PoE network interfaces.
4. Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution.
5. VGA and HDMI simultaneous output.
6. Up to 12 Megapixels resolution recording.
7. ANR technology to enhance the storage reliability when the network is disconnected.
8. Support cloud upgrade.
