| Specification | ||||
| Model | SSV-XVR5104-V4 | |||
| System | OS | Embedded Linux | ||
| Video | Analog Video Input | BNC × 4 | ||
| BNC interface (1.0Vp-p; 75Ω) | ||||
| TVI/AHD/CVI: 5MP@20fps;4MP/1080P/720P@30fps; Supports CVBS | ||||
| IP Video Input | 2CH (up to 6CH); Up to 5MP@30fps | |||
| Total Input | 6CH (Analog + IP) | |||
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) |
|||
| Compression | H.264/H.265/H.265+ | |||
| Multi-screen Display | 1/4/6/9 | |||
| Audio | Input | RCA × 1 | ||
| Output | RCA x 1(linear, 600Ω) | |||
| Two-way Audio | Take up channel one audio input | |||
| Compression | G.711(U/A) | |||
| Record | Resolution | 5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1 | ||
| Frame Rate | Analog Channel: 5MP Lite :12fps; 4MP Lite/1080P : 12fps(PAL)/15fps (NTSC); 1080P Lite/ 720P/ WD1/ D1: 25fps(PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC) |
|||
| Bit Rate | 32Kbps ~ 4Mbps | |||
| Mode | Manual, timer, motion, smart event | |||
| Playback | Playback | 4CH | ||
| Search | Time slice / time / event / tag search | |||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|||
| Function | Play, pause, FF, FB, digital zoom, etc . | |||
| Alarm | Mode | Manual, motion, exception, smart event | ||
| Input | No | |||
| Output | No | |||
| AI Function | Smart Motion Detection Performance |
4CH | ||
| Perimeter Protection Performance |
1CH | |||
| Network | Interface | RJ 45 100Mbps × 1 | ||
| Protocol | TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, Websocket, SNMP, IGMP | |||
| Incoming Bandwidth |
16Mbps(max.36Mbps) | |||
| Outgoing Bandwidth |
40Mbps | |||
| Client Connection |
Max. 5 users access | |||
| Mobile Device | OS | IOS, Android | ||
| Storage | HDD Interface | SATA × 1, up to 10TB | ||
| Backup | Local Backup | U disk, USB mobile HDD | ||
| Network Backup | Yes | |||

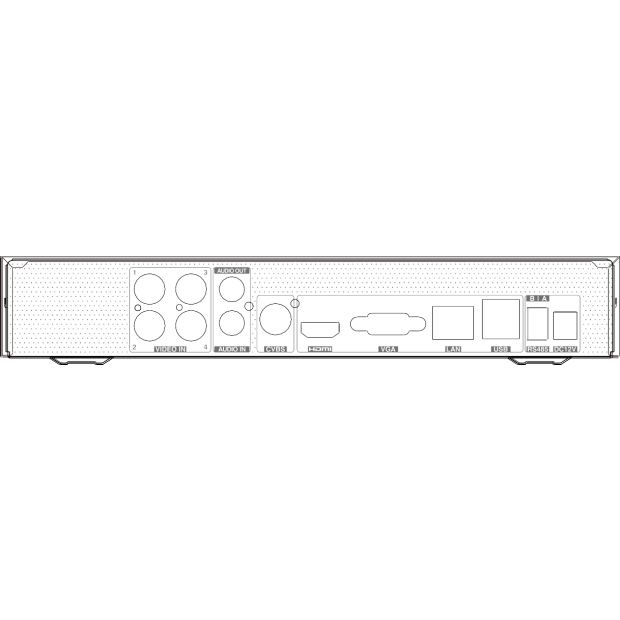

| Port | RS485 | RS 485 × 1 (half-duplex) | ||
| USB | USB 2.0 × 2 ( in the rear panel ) | |||
| Remote Controller |
Optional | |||
| Others | Power Supply | DC12V /1.5A | ||
| Consumption | ≤5W( without HDD) | |||
| Dimensions | 255× 222× 42mm ( W × D × H ) | |||
| Working Environment |
-10 -50 °C, 10% - 90% humidity | |||
| Certificate | CE, FCC | |||
| Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE | |||

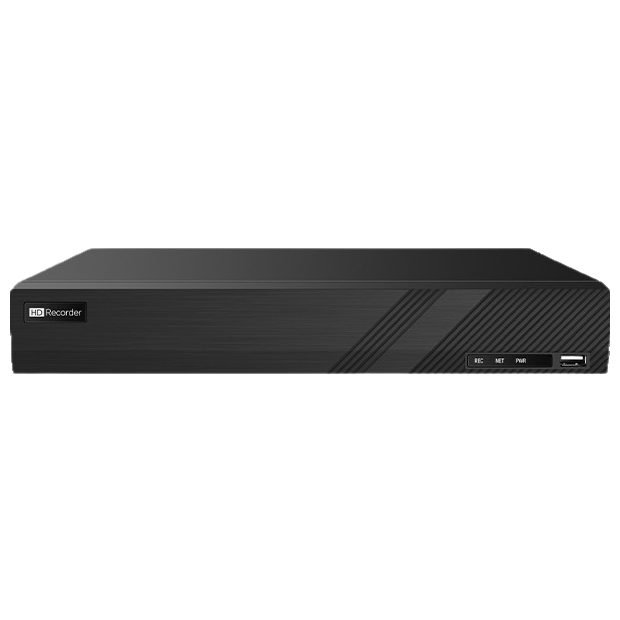

5MP-Lite XVR
SSV- XVR5104-V4
SSV- XVR5104-V4
1. Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse.
2. 4CH analog video input can be switched to 4CH IP video input.
3. Multi-mode recording: manual / timed / motion / sensor / AI recording.
4. Search : time slice, time, event, tag, smart search.
5. Pentaplex : preview, record, playback, backup and remote access.
6. Support PTZ preset and auto cruise, up to 255 presets and 8 cruises.
7. Support NAT function and QRCode scanning by mobile phones.
8. Powerful mobile surveillance by smart phones with iOS and Android OS.
2. 4CH analog video input can be switched to 4CH IP video input.
3. Multi-mode recording: manual / timed / motion / sensor / AI recording.
4. Search : time slice, time, event, tag, smart search.
5. Pentaplex : preview, record, playback, backup and remote access.
6. Support PTZ preset and auto cruise, up to 255 presets and 8 cruises.
7. Support NAT function and QRCode scanning by mobile phones.
8. Powerful mobile surveillance by smart phones with iOS and Android OS.
