| Specification | ||||
| Model | SSV-XVR6832-V3 | |||
| System | OS | Embedded Linux | ||
| Video | Analog Video Input | BNC × 32 | ||
| BNC interface (1.0Vp-p; 75Ω) | ||||
| TVI/AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live) | ||||
| IP Video Input | 8CH (up to 16CH); Up to 8MP@30fps | |||
| Total Input | 40CH (Analog + IP) | |||
| Output | HDMI 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 HDMI 2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768( HDMI1 and HDMI2 output different video sources) VGA × 1 : 1920 × 1080 / 1280 × 1024 (VGA and HDMI1 output the same video source) BNC × 1 : CVBS ( used as the main or spot output ) |
|||
| Compression | H.264/H.265 | |||
| Multi-screen Display | Main output: 1/4/6/8/9/13/16/25/32/36 AUX. output:1/4/6/8/9 Total output: 36+9 |
|||
| Audio | Input | RCA × 16 | ||
| Output | RCA x 1(linear, 600Ω) | |||
| Two-way Audio | Take up channel one audio input | |||
| Compression | G.711(U/A) | |||
| Record | Resolution | 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1 | ||
| Frame Rate | Analog Channel: 4K@8fps(PAL / NTSC); 4K Lite@12/15fps(PAL / NTSC); 5MP @12fps (PAL / NTSC); 5MP Lite@20fps(PAL / NTSC); 4MP/3MP@12/15fps(PAL / NTSC); 4MP Lite/1080P /720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) |
|||
| Bit Rate | 32Kbps ~ 5Mbps | |||
| Playback | Playback | 16CH | ||
| Search | Time slice / time / event / tag search | |||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|||
| Function | Play, pause, FF, FB, digital zoom, etc . | |||
| Alarm | Input | 16CH | ||
| Output | 8CH | |||
| Network | Interface | RJ 45 100Mbps × 2 | ||
| Protocol | TCP / IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP |
|||
| Incoming Bandwidth |
48Mbps (max. 96 Mbps) | |||
| Outgoing Bandwidth |
192Mbps | |||
| Client Connection |
Max. 20 users access | |||
| Mobile Device | OS | IOS, Android | ||
| Storage | HDD Interface | SATA × 8, up to 10TB per HDD | ||
| Backup | Local Backup | U disk, USB mobile HDD | ||
| Network Backup | Yes | |||
| Port | RS485 | Yes (half-duplex), connect to PTZ or keyboard | ||
| USB | USB2.0 × 2, USB3.0 × 1 | |||
| Remote Controller |
Optional | |||
| Others | Power Supply | ATX-200W | ||
| Consumption | ≤ 50W ( without HDD ) | |||
| Dimensions | 445 × 436 × 90mm ( W × D × H ) | |||
| Working Environment |
-10 -50 °C, 10% - 90% humidity | |||
| Certificate | CE, FCC | |||
| Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE | |||

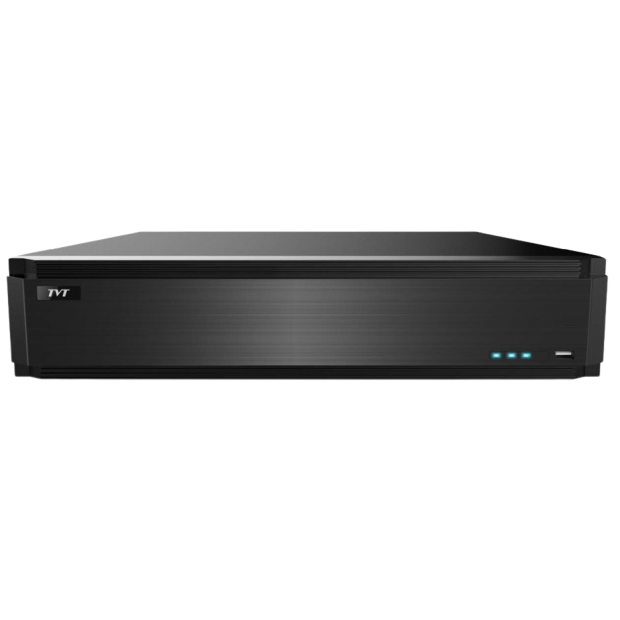

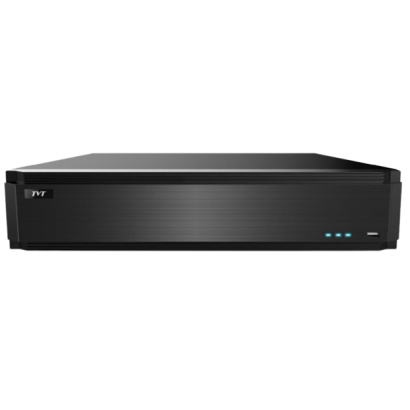

8MP XVR
SSV-XVR6832-V3
SSV-XVR6832-V3
1. Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse.
2. 8CH analog video input can be switched to 8CH IP video input.
3. Multi-mode recording: manual / timed / motion / sensor / AI recording.
4. Search : time slice, time, event, tag, smart search.
5. Pentaplex : preview, record, playback, backup and remote access.
6. Support PTZ preset and auto cruise, up to 255 presets and 8 cruises.
7. Support NAT function and QRCode scanning by mobile phones.
8. Powerful mobile surveillance by smart phones with iOS and Android OS.
2. 8CH analog video input can be switched to 8CH IP video input.
3. Multi-mode recording: manual / timed / motion / sensor / AI recording.
4. Search : time slice, time, event, tag, smart search.
5. Pentaplex : preview, record, playback, backup and remote access.
6. Support PTZ preset and auto cruise, up to 255 presets and 8 cruises.
7. Support NAT function and QRCode scanning by mobile phones.
8. Powerful mobile surveillance by smart phones with iOS and Android OS.
