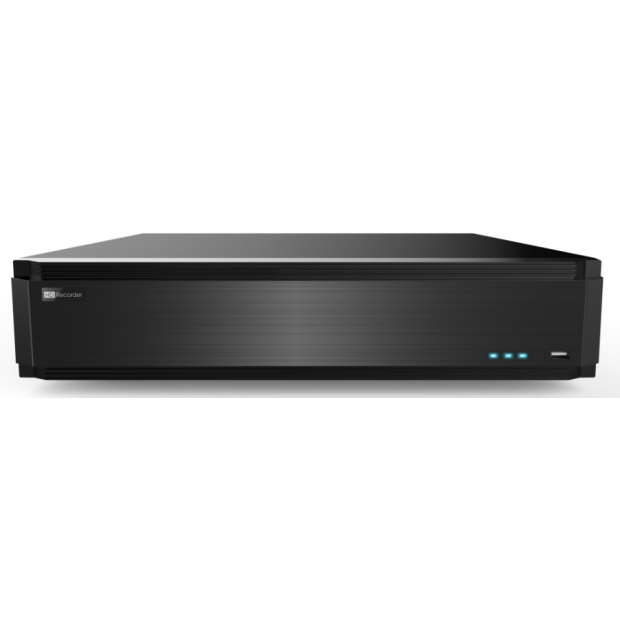

SSV-NVR6864G

1. Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse.
2. Multi-mode recording: manual / timed / motion / sensor / POS / AI recording.
3. Search : time slice, time, event, tag, smart search.
4. Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
5. Pentaplex : preview, record, playback, backup and remote access.
6. Support POS information overlay on live view and playback.
7. Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device.
8. Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises

Specification
Model		SSV-NVR6864G
System	OS	Embedded Linux
Video	Network Input	64CH IPC input
	Bandwidth	Incoming: 320Mbps / Outgoing: 320Mbps
	Network Input Resolution	12MP/ 8MP/ 6MP/5MP/4MP/3MP/ 1080P/ 1280 × 1024/960P/ 720P/960H/D1/CIF
	Output	HDMI 1: 3840 × 2160@60fps / 3840 × 2160@30fps /1920 × 1080 /1280×1024 / 1024 × 768 HDMI 2: 1920 × 1080/ 1280×1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280×1024 / 1024 × 768
	Sreen Display Mode	1/4/6/8/9/ 13/ 16/25/32/36/64
	Compression	H.265S /H.265+ / H.265 / H.264
Audio	Network Input	64CH IPC audio input
	Local Input	RCA × 1 (for two-way audio)
	Local Output	RCA x 1
	Compression	G.711(U/A)
Record	Record Stream	Dual stream recording
	Resolution	12MP@20fps; 8MP/ 6MP/5MP/4MP/3MP/ 1080P/ 1280 × 1024/ 960P/ 720P/960H/D1/CIF@30fps(NTSC)/25fps(PAL)
	Mode	Manual/timed/motion/sensor/POS/AI recording
Playback	Simultaneous Playback	Max. 16CH
	Search	Time slice / time / event / tag / smart search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc .
Decoding Capability	Live View/ Playback	1CH: 12MP / 4CH: 5MP / 9CH: 720P/ 16CH: 720P
Alarm	Mode	Manual, sensor, motion, exception, smart events
	Input	8CH local alarm input; supports IPC alarm input
	Output	4CH
	Triggering	Record, snap, preset, e-mail, etc .
Video Structure Analysis	Human/Vehicle Classification	Yes
Network	Interface	RJ 45 x 2 (10 / 100 / 1000 Mbps)
	Protocol	TCP / IP, PPPoE , DHCP, DNS , DDNS , UPnP, NTP, SMTP, HTTP, HTTPs , 802 . 1x , ONVIF, etc .
	Client Connection	Max. 20 users access
Mobile Device	OS	IOS, Android
Storage	HDD Interface	SATA × 8, up to 8TB per HDD ; E-SATA × 2
	RAID	RAID0, RAID1, RAID5, RAID6, RAID10
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	USB	USB2.0 × 2, USB3.0 × 1
	RS485	Yes (full-duplex) ; connectors for PTZ and keyboard
	Remote Controller	Yes
Others	Power Supply	ATX 250W
	Consumption	≤ 30W ( without HDD )
	Dimensions	445 × 436 × 90mm ( W × D × H )
	Working Environment	-10 -50 °C, 10% - 90% humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
