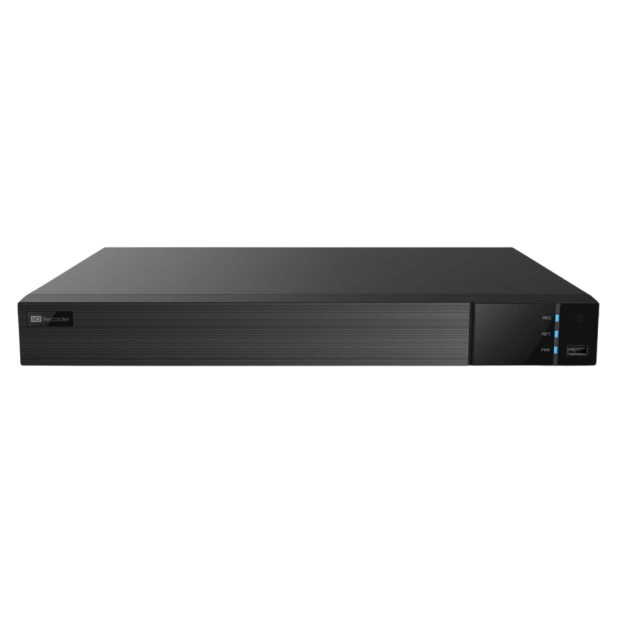

SSV- NVR6104-P4-V5

1. Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse.
2. Multi-mode recording: manual / timed / motion / sensor / POS / AI recording.
3. Search : time slice, time, event, tag, smart search.
4. Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc .
5. Pentaplex : preview, record, playback, backup and remote access.
6. Support POS information overlay on live view and playback.
7. Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device.

Specification
Model		SSV- NVR6104-P4-V5
System	OS	Embedded Linux
Video	Network Input	4CH IPC input
	Network Input Resolution	8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
	Output	HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
	Sreen Display Mode	1/4
	Compression	H.265S /H.265+ / H.265 / H.264
Audio	Network Input	4CH IPC audio input
	Local Input	RCA × 1 (for two-way audio)
	Local Output	RCA x 1
	Compression	G.711(U/A)
Record	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
	Frame Rate	NTSC:30fps; PAL:25fps
Playback	Simultaneous Playback	Max. 4CH
	Search	Time slice / time / event / tag / smart search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc .
Decoding Capability	Live View/ Playback	Non-AI Mode:1×8MP@30fps/4×4MP@30fps AI Mode: 1×8MP@30fps/4×3MP@30fps
Alarm	Mode	Manual, sensor, motion, exception, smart events
	Input	Supports IPC alarm input
	Output	Supports IPC alarm output
	Triggering	Record, snap, preset, e-mail, etc .
Network	Interface	RJ 45 × 1 (10/100/1000Mbps)
	Protocol	TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF
	Incoming/ Outgoing Bandwidth	80/80 (Mbps)
		*When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR.
	Client Connection	Max. 64 users access
Face	Face Detection Performance (AI by IPC)	4CH
	Face Detection Performance (AI by Device)	2 CH (2MP) or 1 CH (4MP)
	Face Match Performance	No
	Statistical Graph of Information	Bar graph
	Statistical Mode of Information	Statistics by day, week, month, quarter as well as customized time period
Perimeter Protection	Human/Vehicle Classification (AI by IPC)	4CH
	Human/Vehicle Classification (AI by Device)	2 CH (2MP) or 1 CH (4MP)
Video Metadata	Human/Vehicle Attribute Analysis	Yes (AI by IPC)
Other Functions	Fisheye	Supports fisheye dewarping via Web Client and mobile APP
	Plate Recognition (AI by IPC)	Yes
Mobile Device	OS	IOS, Android
Storage	HDD Interface	SATA3.0 × 1, Max 10T
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	USB	USB 2.0 × 2
	Remote Controller	Optional
PoE	PoE Ports	100M RJ45 × 4
	Standard	IEEE802.3AF/AT
	Output Power	≤48W
Others	Power Supply	DC 48V/1.25A
	Consumption	≤ 10W ( without HDD )
	Dimensions	300 × 249 × 45 mm ( W × D × H )
	Working Environment	-10 -50 °C, 10% - 90% humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
