| Specification | |||
| Model | SC-DVR2M16-S2 | ||
| Operating System | Embedded Linux | ||
| Compression | H.265/H.264 | ||
| System Operating | Multi-task operation, real-time monitoring, recording, playback, backup and remote monitoring | ||
| Operating Mode | Can be controlled via mouse, web browser, central control software or iOS/Android App | ||
| Camera Input | 16ch camera input, support 8MP/8MP Lite/5MP/5MP Lite/4MP/4MP Lite/1080P/720P/960H/CVBS | ||
| Video Output | HDMI: 4K(3840 x 2160), 2K(2560x1440), 1920x1080, 1280x1024, 1280x720 VGA :1920x1080, 1280x1024, 1280x720 CVBS: 704x576 |
||
| Audio Input | 4 x RCA input | ||
| Audio Output | 1 x RCA output | ||
| Audio Format | G.711 | ||
| Intercom Voice | Support | ||
| Recording Mode | Scheduled recording/displacement/alarm/continuous recording | ||
| Recording Capability | Max to 8MP Lite: 112 fps, 5MP:96fps, 5MP Lite:192fps, 4MP Lite:240fps, 1080p:240fps, 720p:480fps, 960H:480fps | ||
| Pre-recording | 5 sec. | ||
| Post-event Recording | 0 ~ 255 sec. | ||
| Playback Display | Single split / 4 split / 8 split / 16 split simultaneous playback | ||
| Playback Capability | Max to 8MP Lite: 112 fps, 5MP:96fps, 5MP Lite:192fps, 4MP Lite:240fps, 1080p:240fps, 720p:480fps, 960H:480fps (Multiple splits = small bitrate; Single split = large bitrate) | ||
| Playback Mode | Playback / Pause / Frame / Fast Play / Reverse / Fast Reverse | ||
| Searching Mode | Date / Time / Event / Channel | ||
| Backup | Through local USB port/network/central control software | ||
| Built-in HDD | 2 x SATA HDD, each max to 14TB, total 28TB | ||
| Protocol | TCP / IP, SMTP, DHCP, DDNS, PPPoE, UDP, SSL, RTP, RTSP, NTP | ||
| Ethernet | RJ45 10/100/1000Mbps | ||
| USB | USB 2.0 x2 | ||
| Alarm | 4 input / 1 output | ||
| RS485 | 1; Support Pelco D, Pelco P | ||
| Remote Browsing | By IE browser, CMS central control software, App | ||
| Mobile/Tablet | Support Android/iOS Apps | ||
| Simultaneous Online User |
Supports simultaneous monitoring by multiple remote users | ||
| Watermark | Support | ||
| User Right | 3 levels of user rights | ||
| Monitoring | Watchdog | ||
| Power Supply | D12V/3.33A, 40W | ||
| Dimensions | 319(W) x 297(D) x 53(H)mm ± 5mm | ||
| Working Temperature | 0°C ~ 40°C | ||

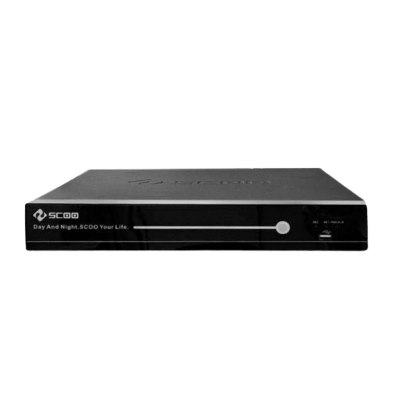

8MP-Lite XVR
SC-DVR2M16-S2
SC-DVR2M16-S2
【16CH & H.265 & 8MP-Lite】
1. MIT, Taiwan chip：100% made in Taiwan, the first choice for public institutions.
2. Newly designed UI interface: Optimized operation interface, intuitive operation.
3. Real-time monitoring, recording, playback, backup and remote monitoring are possible at the same time.
4. Comply with the US National Defense Acquisition Act (NDAA) standards.
1. MIT, Taiwan chip：100% made in Taiwan, the first choice for public institutions.
2. Newly designed UI interface: Optimized operation interface, intuitive operation.
3. Real-time monitoring, recording, playback, backup and remote monitoring are possible at the same time.
4. Comply with the US National Defense Acquisition Act (NDAA) standards.
