| Specification | |||
| Model | SC-N104P-H1 | ||
| Device | |||
| System | Embedded Linux | ||
| Watch Dog | Hardware + Software | ||
| Restart | Restart the system automatically after electricity restored. | ||
| Real-time Monitoring | 4ch; Multiple configuration displays: 1x1 / 2x2 | ||
| Video Output | HDMIx1, VGAx1 | ||
| Resolution | 3840x2160 / 1920x1080 / 1280x720 | ||
| Image Enhancement | OSD display（NVR）, OSD display（Camera）, camera message, event notification, aspect ratio | ||
| PTZ Control | Direction control, home position, iris, preset point, patrol (group), PiP control | ||
| Video/Audio/Recording | |||
| Video Format | H.265 / H.264 / MJPEG | ||
| Graphics Decoder | Hardware decoding | ||
| Decoding Capability | 3840x2160@30fps(1CH)/1920x1080@120fps(4CH) | ||
| Audio Format | G.711 / G.726 | ||
| Audio Input / Output | 3.5 Headphone jack | ||
| Recording Time | Pre-recording 3s (up to 5s), post-recording 20s (up to 300s) | ||
| Recording Mode | Continuous, scheduled, manual, event | ||
| Recording Setting | Recycle (Unit: day) | ||
| Storage & Backup | |||
| HDD | 1x 3.5” | ||
| HDD Management | Create, format, and remove HDD / HDD S.M.A.R.T | ||
| Storage | USB(FAT format) | ||
| Playback | |||
| Playback Display | 4ch; Multiple configuration: 1x1, 2x2 | ||
| Video Searching | By calendar, date/time and alarm | ||
| Playback Control | General (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (image search) | ||
| Image Searching | By calendar, date/time and alarm | ||
| Thumbnail Browser (Image Search) |
Support | ||
| Snapshot | JPEG | ||
| Video Editing and Exporting | 3gp file | ||
| Network | |||
| Ethernet | 1(TBD) x RJ-45 10M/100M bps Ethernet connector | ||
| Protocol | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP filters | ||
| PoE | 802.3at/af PoE compatible ports x4 (Total maximum 50W) | ||
| System | |||
| Alarm Input / Output | 4 / 1 | ||
| USB | 2 (USB2.0 , USB3.0) | ||
| Camera Integration | ONVIF Profile S | ||
| Event Detection | Motion detection, tampering detection, PIR, DI/DO, disconnection, storage abnormality/full | ||
| Event Action | Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS, VIVO Cloud APP notification | ||
| User Management | User Level: System administrator, general user | ||
| Log File | System, recording, user, error | ||
| Date & Time | Time zone, manual, automatic synchronization NTP, daylight saving time | ||
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic | ||
| Software APP | Shepherd, VAST 2 | ||
| Mobile APP | iViewer (Android & iOS) | ||
| Web Browser | Internet Explorer 10 (32bit) or later versions/Windows | ||
| VIVO Cloud | Support | ||
| General | |||
| Power Supply | DC48V 2A | ||
| Working Temperature. | 0~40°C(32~104°F) | ||
| Dimensions | 263.6 x 247 x 43.3mm | ||

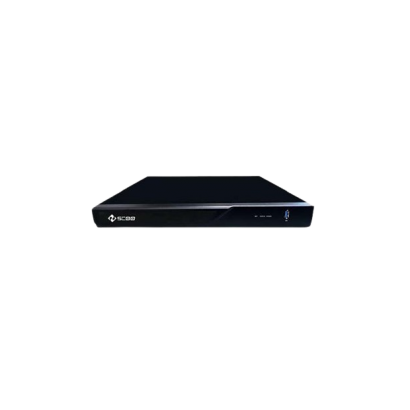

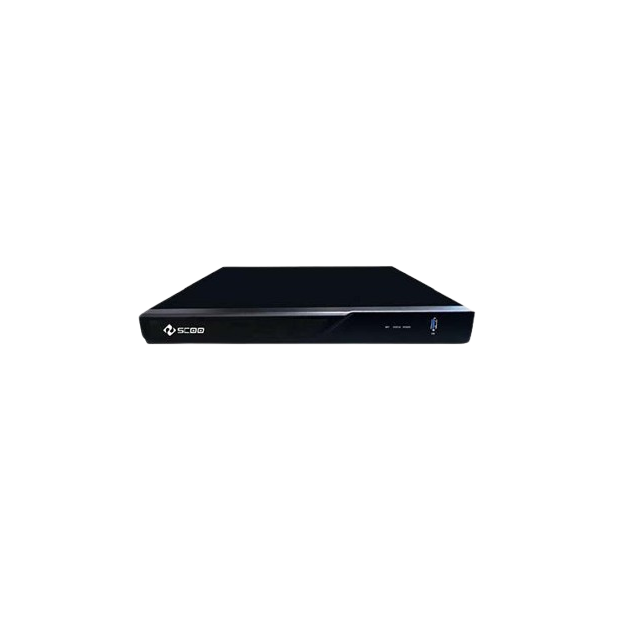

8MP NVR
SC-N104P-H1
SC-N104P-H1
【4CH & H.265 & 8MP】
1. H.265, max support to 8MP camera.
2. Support 1 x 3.5”HDDs.
3. Real-time monitoring of 4 channels.
4. Alarm: 4 IN / 1 OUT。
5. Comply with the US National Defense Acquisition Act (NDAA) standards.
1. H.265, max support to 8MP camera.
2. Support 1 x 3.5”HDDs.
3. Real-time monitoring of 4 channels.
4. Alarm: 4 IN / 1 OUT。
5. Comply with the US National Defense Acquisition Act (NDAA) standards.
