| Specification | |||
| Model | SSV-IP555S4-Z | ||
| Standard | NTSC／PAL（According to region） | ||
| Sensor | 1/2.7”CMOS | ||
| IR-LED&Coverage | Built-in high-brightness LED, around 30m | ||
| Lens | 5MP 2.8~12mm Motorized Varifocal Lens | ||
| Min Illumination | 0.007Lux（F/1.6）0 Lux IR/ON | ||
| Resolution | 2880 x 1620 | ||
| WDR | 120dB | ||
| Streaming | 2880 x 1620 @20fps 1280 x 720 @30fps 704 x 480 @30fps |
||
| Image Setting | Saturation / Brightness / Contrast / Sharpness | ||
| Image Quality | VBR / CBR Adjustable | ||
| White Balance | TTL ATW（2500∘K～9500∘K） | ||
| Electric Shutter | 1～1/100,000 sec. | ||
| BLC / HLC | Support | ||
| Motion Detection / Mirror & Flip | Support | ||
| Audio | Built-in Microphone x 1, External Audio Input x 1 | ||
| RJ45 / Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPs, QoS | ||
| Power Supply | DC12V 1A / POE / (MAX Consumption: 5.5W) | ||
| Weight | 0.65Kg | ||
| Aluminum Shell | Waterproof IP67 | ||
| Working Temperature | -30℃～60℃ | ||
| Aluminum Shell | 112(DIA) mm x 100(H) mm | ||
| Certification | CE / FCC | ||

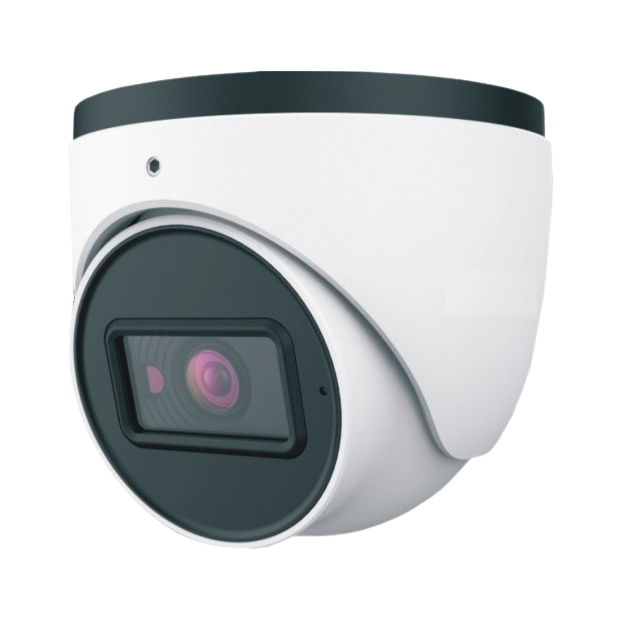

5MP IP Camera
SSV-IP555S4-Z
SSV-IP555S4-Z
【2.8~12mm Auto Focus】
1. Adopts H.265+/ H.264/ MJPEG compression format and supports three-stream design.
2. Built-in SD card slot, max support to 256G recording.
3. ICR dual filters can automatically switch from color to black and white in low light conditions.
4. Support local and network storage, playback, backup, and other functions.
5. Support 2D and 3D noise reduction functions.
6. With intelligent functions: Line Crossing / Regional Intrusion / Motion Detection / Abnormal Imaging Detection.
7. Supports IE/Chrome/Edge browsers and CMS central control software for convenient management.
1. Adopts H.265+/ H.264/ MJPEG compression format and supports three-stream design.
2. Built-in SD card slot, max support to 256G recording.
3. ICR dual filters can automatically switch from color to black and white in low light conditions.
4. Support local and network storage, playback, backup, and other functions.
5. Support 2D and 3D noise reduction functions.
6. With intelligent functions: Line Crossing / Regional Intrusion / Motion Detection / Abnormal Imaging Detection.
7. Supports IE/Chrome/Edge browsers and CMS central control software for convenient management.
DETAIL
