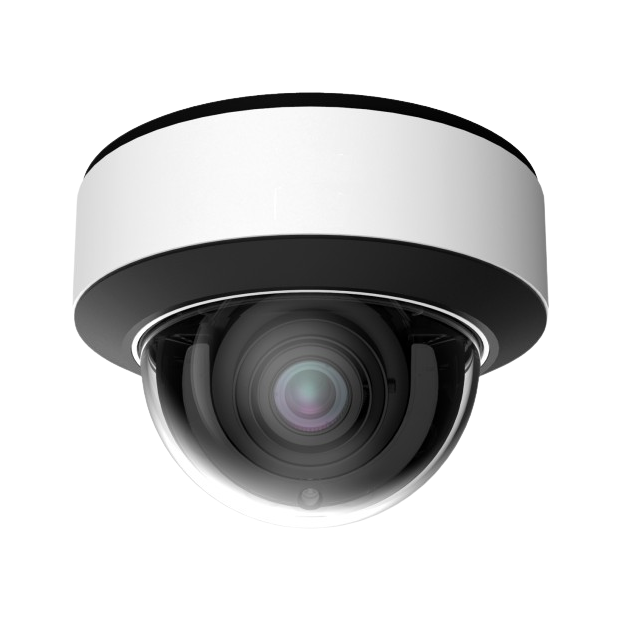

5MP IP Camera

SSV-IP553E3B

SSV-IP553E3B

【2.8~12mm Auto Focus】

1. Adopts H.265+/ H.264/ MJPEG compression format and supports three-stream design.
2. Built-in SD card slot, max support to 256G recording.
3. ICR dual filters can automatically switch from color to black and white in low light conditions.
4. Support local and network storage, playback, backup, and other functions.
5. Support 2D and 3D noise reduction functions.
6. With intelligent functions: Face Detection / Human & Vehicle Recognition / Line Crossing / Regional Intrusion / Motion Detection / Abnormal Imaging Detection.
7. Supports IE/Chrome/Edge browsers and CMS central control software for convenient management.
DETAIL
Specification
Model SSV-IP553E3B
Standard NTSC/PAL(According to region)
Sensor 1/2.7”CMOS
IR-LED&Coverage Built-in high-brightness LED, around 50m
Lens 5MP 2.8~12mm Motorized Varifocal Lens
Min Illumination 0.02 Lux(F/1.6)0 Lux IR/ON
Resolution 2592 x 1944
WDR 120dB
Streaming 2592 x 1944 @30fps / 1920 x 1080@60fps
1280 x 720 @30fps
704 x 480@30fps
Image Setting Saturation / Brightness / Contrast / Sharpness
Image Quality VBR / CBR Adjustable
White Balance TTL ATW(2500∘K~9500∘K)
Electric Shutter 1/3~1/100,000 sec.
BLC / HLC Support
Motion Detection / Mirror & Flip Support
Audio Built-in Microphone x 1 / External Audio Input x 1 & Output x 1
Port Support Alarm Input x 1 & Output x 1 / Support CVBS Output x 1
RJ45 / Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPs, QoS
Power Supply DC12V 1A / POE / (MAX Consumption: 12.5W)
Weight 0.93Kg
Aluminum Shell Waterproof IP67 / IK10
Working Temperature -30℃~60℃
Aluminum Shell 141(DIA) mm x 100(H) mm
Certification CE / FCC
