| Specification | |||
| Model | SSV-IP352E3B | ||
| Standard | NTSC／PAL（According to region） | ||
| Sensor | 1/2.7”CMOS | ||
| IR-LED&Coverage | Can be customized | ||
| Lens | Optional | ||
| Min Illumination | 0.006Lux（F/1.2）0 Lux IR/ON | ||
| Resolution | 2592 x 1944 | ||
| WDR | 120dB | ||
| Streaming | 2592 x 1944 @30fps / 1920 x 1080@60fps 1280 x 720 @30fps 704 x 480@30fps |
||
| Image Setting | Saturation / Brightness / Contrast / Sharpness | ||
| Image Quality | VBR / CBR Adjustable | ||
| White Balance | TTL ATW（2500∘K～9500∘K） | ||
| Electric Shutter | 1/3～1/100,000 sec. | ||
| BLC / HLC | Support | ||
| Motion Detection / Mirror & Flip | Support | ||
| Audio | Built-in Microphone x 1, External Audio Input x 1 | ||
| Port | Support Alarm Input x 2, Output x 2 / CVBS Output x 1 / RS485 x 1 | ||
| RJ45 / Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS | ||
| Power Supply | DC12V 1A / POE / (MAX Consumption: 7W) | ||
| Weight | 0.5Kg | ||
| Working Temperature | -30℃～60℃ | ||
| Aluminum Shell | 161(L) mm x 79(W) mm x 64(H) mm | ||
| Certification | CE / FCC | ||

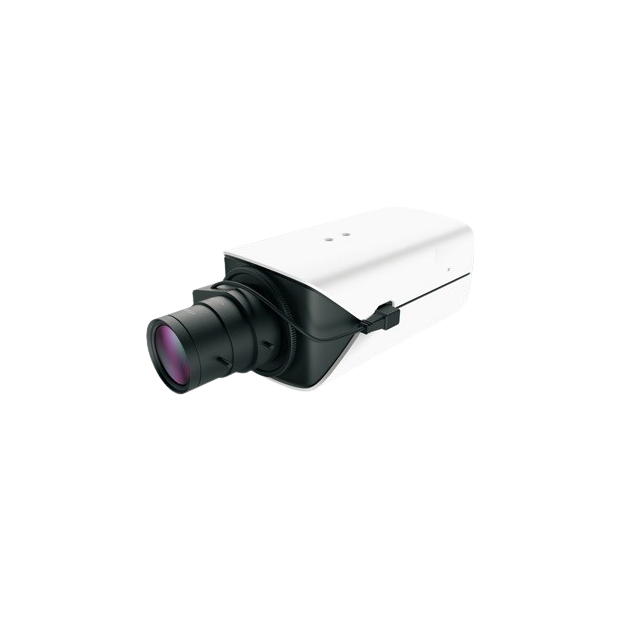

Special IP Camera
SSV-IP352E3B
SSV-IP352E3B
【Lens Optional】
1. Adopts H.265+/ H.264/ MJPEG compression format and supports three-stream design.
2. Built-in SD card slot, max support to 256G recording.
3. ICR dual filters can automatically switch from color to black and white in low light conditions.
4. Support local and network storage, playback, backup, and other functions.
5. Support 2D and 3D noise reduction functions.
6. With intelligent functions: Face Detection / Human & Vehicle Recognition / Line Crossing / Regional Intrusion / Motion Detection / Abnormal Imaging Detection.
7. Supports IE/Chrome/Edge browsers and CMS central control software for convenient management.
1. Adopts H.265+/ H.264/ MJPEG compression format and supports three-stream design.
2. Built-in SD card slot, max support to 256G recording.
3. ICR dual filters can automatically switch from color to black and white in low light conditions.
4. Support local and network storage, playback, backup, and other functions.
5. Support 2D and 3D noise reduction functions.
6. With intelligent functions: Face Detection / Human & Vehicle Recognition / Line Crossing / Regional Intrusion / Motion Detection / Abnormal Imaging Detection.
7. Supports IE/Chrome/Edge browsers and CMS central control software for convenient management.
DETAIL
