| Specification | |||
| Model | SSV-ATR862HN | ||
| Real-Time Display Speed | 8MP@15fps ; 5MP@20fps ; 4MP, 3MP, 1080P, 720P, WD1@30 fps/ IPC 8MP@20fps | ||
| Recording Frame Rate | 8MP@7fps / 8MP Lite@15fps / 5MP @12 fps / 5MP Lite @20 fps / 4MP Lite / 1080P / 720P / WD1(960x480)@30 fps Individually adjust the recordings frame rate and image quality/main stream for each channel |
||
| Display | 1／4／6 / 8 / 9 / 13 / 16 / 25 Split screen, channel switching, multi-segment digital zooming | ||
| Recording Setting | Automatic and manual dual mode switching Recording type: full-time / motion / alarm / smart recording |
||
| Playback | Can be playback based on event/time/multiple divisions | ||
| Playback Speed | Forward / Rewind: x1 / x2 / x4 / x8 / x16 / x32 | ||
| Playback Number | Host: 16 / Remote: 8 | ||
| OSD Display | Channel Name / Time Format | ||
| Screen Output | CVBS (Spot)x 1 ／VGA x1 (1920x1080) ／HDMI x1(3840x2160) | ||
| Video Input | 16CH input (4 modes can be mixed) + 8CH IPC input | ||
| Audio | External or coaxial audio input x 16 / Audio output x 1 | ||
| Alarm | Alarm input x 16 / Alarm output x 4 | ||
| Motion Detection | Support 4-zone motion detection / 8-level sensitivity adjustable | ||
| RS-485/422 | PTZ controlling & Connecting the keyboard for Host controlling | ||
| Storage | Built-in 3.5-inch SATA interface HDD x 2 (Up to 10TB), E-SATA x 1 | ||
| Network Interface | RJ45 1000Mbps x 1 | ||
| Protocol | TCP/IP/PPPoE/DHCP/DNS/DDNS/UPnP/HTTP/HTTPS/802.1x | ||
| Power Supply | DC12V 4A / Consumption: 30W (HDD excluded) | ||
| Working Temperature | -10℃～50℃ | ||
| Dimension | 380(W) mm x 270(D) mm x 45(H)mm | ||
| Certification | CE /FCC | ||

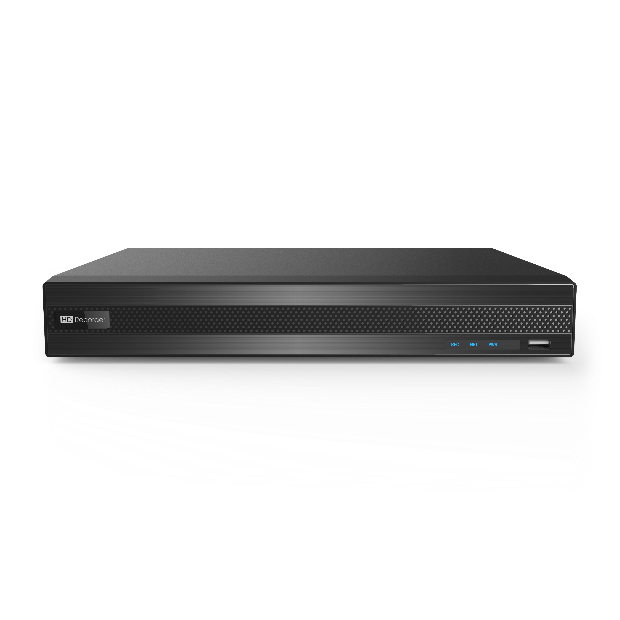

8MP XVR
SSV-ATR862HN
SSV-ATR862HN
【16CH & H.265 & 8MP】
1. Support 8M/5M/4M/1080P/720P resolution；Support AHD / TVI / CVI / WD1 input.
2. H.265 / H.264 compression.
3. 8 IP camera inputs can be added/NVR mode can be switched to a maximum of 16CH IP inputs.
4. Support multiple sets of account password levels and permission management functions; Support USB2.0 / 3.0 or network backup.
5. Support Browser: Google Chrome/Edge；Support CMS remote management setting.
6. Support Intelligent Analysis: Regional Intrusion / Line Crossing / Motion Detection.
7. Support 4G mobile phone monitoring and push function (Android/iPhone/iPad).
1. Support 8M/5M/4M/1080P/720P resolution；Support AHD / TVI / CVI / WD1 input.
2. H.265 / H.264 compression.
3. 8 IP camera inputs can be added/NVR mode can be switched to a maximum of 16CH IP inputs.
4. Support multiple sets of account password levels and permission management functions; Support USB2.0 / 3.0 or network backup.
5. Support Browser: Google Chrome/Edge；Support CMS remote management setting.
6. Support Intelligent Analysis: Regional Intrusion / Line Crossing / Motion Detection.
7. Support 4G mobile phone monitoring and push function (Android/iPhone/iPad).
DETAIL
