| Specification | |||
| Model | SSV-DH332H8-B2 | ||
| Recording Frame Rate | 32CH: 8MP/5MP/4MP/3MP/1080P/720P @30fps Individually adjust the recordings frame rate and image quality/Main Stream: 512kb～1Mb / Sub Stream:128kb～1024kb for each channel |
||
| Display | 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 Split screen, channel switching, multi-segment digital zooming | ||
| Recording Setting | Automatic and manual dual mode switching Recording type: full-time / motion / alarm / smart recording |
||
| Playback | Can be playback based on event/time/multiple divisions | ||
| Playback Speed | Forward / Rewind: x1 / x2 / x4 / x8 / x16 / x32 | ||
| Playback Number | Host : 16 / Remote : 16 | ||
| Playback Resolution | 1CH 8MP / 4CH 1080P | ||
| OSD Display | Channel Name / Time Format | ||
| Screen Output | VGA (1920x1080) x 1 / HDMI(1920x1080) x 1 / HDMI(3840x2160) x 1 | ||
| Video Input | Support 32CH IP Camera Video Input | ||
| Audio | External audio input x 1 / Audio output x 1 | ||
| Alarm | Alarm input x 16 / Alarm output x 4 | ||
| Motion Detection | Support 4-zone motion detection / 8-level sensitivity adjustable | ||
| Backup | USB2.0 Backup / Network Remote Backup / CMS Backup | ||
| Storage | Built-in 3.5-inch SATA interface HDD x 8 (Up to 10TB), E-SATA x 1 | ||
| Network Interface | RJ45 1000Mbps x 2 | ||
| Protocol | TCP/IP/PPPoE/DHCP/DNS/DDNS/UPnP/HTTP/HTTPS/802.1x | ||
| Power Supply | 110-220V / Consumption: 30W(HDD excluded) | ||
| Working Temperature | -10℃～50℃ | ||
| Dimension | 445(W) mm x 440(D) mm x 90(H)mm | ||
| Certification | CE /FCC | ||

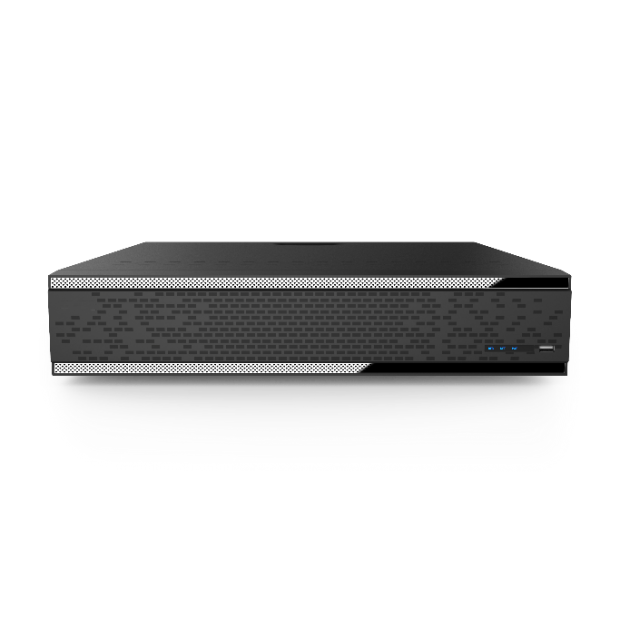

8MP NVR
SSV-DH332H8-B2
SSV-DH332H8-B2
【32CH & H.265 & 5MP】
1. H.265 / H.264 compression.
2. With Chinese graphical GUI interface; 1 set of intercom function / Built-in alarm input & output contacts.
3. Support multiple sets of account password levels and permission management functions；Support 2 x USB2.0 / USB3.0 or network backup.
4. Support DVR remote backup；Support disk array Raid 0 / 1 / 5 / 6 / 10.
5. Support Browser: Google Chrome/Edge；Support CMS remote management setting.
6. Support Intelligent Analysis: Regional Intrusion / Line Crossing / Motion Detection / Face Recognition / License Plate Recognition.
7. Support 4G mobile phone monitoring and push function (Android/iPhone/iPad).
1. H.265 / H.264 compression.
2. With Chinese graphical GUI interface; 1 set of intercom function / Built-in alarm input & output contacts.
3. Support multiple sets of account password levels and permission management functions；Support 2 x USB2.0 / USB3.0 or network backup.
4. Support DVR remote backup；Support disk array Raid 0 / 1 / 5 / 6 / 10.
5. Support Browser: Google Chrome/Edge；Support CMS remote management setting.
6. Support Intelligent Analysis: Regional Intrusion / Line Crossing / Motion Detection / Face Recognition / License Plate Recognition.
7. Support 4G mobile phone monitoring and push function (Android/iPhone/iPad).
DETAIL
