| Specification | |||
| Model | SSV-DH308H1-8P-B1 | ||
| Recording Frame Rate | 8CH: 8MP/5MP/4MP/3MP/1080P/720P @30fps Individually adjust the recordings frame rate and image quality/Main Stream: 512kb～1Mb / Sub Stream:128kb～1024kb for each channel |
||
| Display | 1 / 4 / 6 / 8 / 9 Split screen, channel switching, multi-segment digital zooming | ||
| Recording Setting | Automatic and manual dual mode switching Recording type: full-time / motion / alarm / smart recording |
||
| Playback | Can be playback based on event/time/multiple divisions | ||
| Playback Speed | Forward / Rewind: x1 / x2 / x4 / x8 / x16 / x32 | ||
| Playback Number | Host: 8 / Remote: 8 | ||
| Playback Resolution | 1CH 8MP / 4CH 1080P | ||
| OSD Display | Channel Name / Time Format | ||
| Screen Output | VGA (1920x1080) x 1 / HDMI(3840x2160) x 1 | ||
| Video Input | Support 8CH IP Camera Video Input | ||
| Audio | External audio input x 1 / Audio output x 1 | ||
| Motion Detection | Support 4-zone motion detection / 8-level sensitivity adjustable | ||
| Backup | USB2.0 Backup / Network Remote Backup / CMS Backup | ||
| Storage | Built-in 3.5-inch SATA interface HDD x 1 (Up to 10TB) | ||
| Network Interface | RJ45 1000Mbps x 1 / PoE Portx 8 | ||
| Protocol | TCP/IP/PPPoE/DHCP/DNS/DDNS/UPnP/HTTP/HTTPS/802.1x | ||
| Power Supply | DC48V 2A / Consumption: 10W(HDD excluded) | ||
| Weight | 1.2Kg(HDD excluded) | ||
| Working Temperature | -10℃～50℃ | ||
| Dimension | 300(W) mm x 250(D) mm x 45(H)mm | ||
| Certification | CE /FC | ||

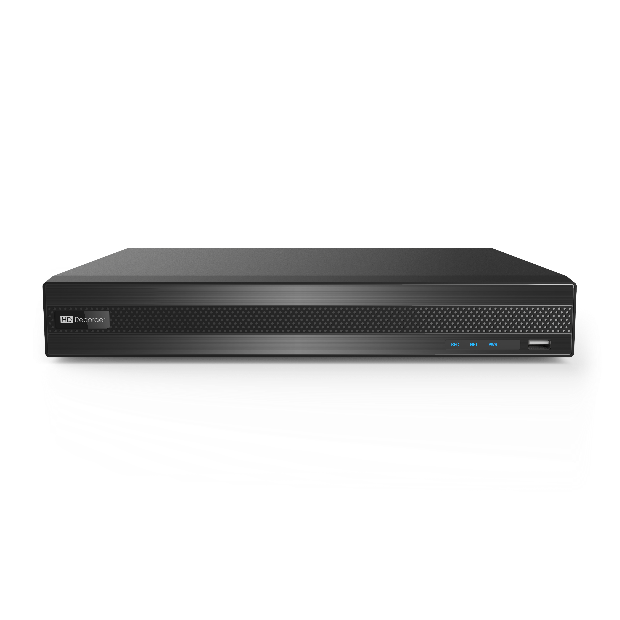

8MP PoE NVR
SSV-DH308H1-8P-B1
SSV-DH308H1-8P-B1
【8CH & H.265 & 5MP】
1. H.265 / H.264 compression.
2. With Chinese graphical GUI interface; 1 set of intercom function.
3. Support multiple sets of account password levels and permission management functions; Support 2 x USB2.0 or network backup.
4. Support 8CH PoE independent power supply (Total wattage 96W)；Support DVR remote backup.
5. Support Browser: Google Chrome/Edge；Support CMS remote management setting.
6. Support Intelligent Analysis: Regional Intrusion / Line Crossing / Motion Detection.
7. Support 4G mobile phone monitoring and push function (Android/iPhone/iPad).
1. H.265 / H.264 compression.
2. With Chinese graphical GUI interface; 1 set of intercom function.
3. Support multiple sets of account password levels and permission management functions; Support 2 x USB2.0 or network backup.
4. Support 8CH PoE independent power supply (Total wattage 96W)；Support DVR remote backup.
5. Support Browser: Google Chrome/Edge；Support CMS remote management setting.
6. Support Intelligent Analysis: Regional Intrusion / Line Crossing / Motion Detection.
7. Support 4G mobile phone monitoring and push function (Android/iPhone/iPad).
