Specification | ||||
Model | SS-3236DK | |||
System | Multiplex | Hexaplex operation -simultaneous record, live, playback, backup, control, & remote access | ||
Video | Format | IP-CAM: ONVIF Profile S / T ; Analog: NTSC/EIA or PAL/CCIR or AHD/TVI/CVI | ||
Input | IP-CAM: up to 16-CH 1080p/720p, IP-CAM supports up to 8MP Analog: up to 16-CH AHD/TVI/CVI 8MP, BNC, 1Vp-p /75ohm, Total Max: 16-CH Analog or IP-CAM |
|||
Output | HDMI with resolution up to 3840x2160; VGA, with resolution up to 1920x1080; CBVS | |||
Audio | Input / Output | * Standard: 4 RCA-jack + 16-CH Coaxial audio Input ; 2 RCA-jack / HDMI output * Optional: 8 RCA-jack input (without Coaxial Audio) ; 2 RCA-jack / HDMI output |
||
Record | Compression | Audio: ADPCM | ||
Max frame rate | IP-CAM: 8MP/5MP/1080p/720p, Up to 80Mbps incoming bandwidth for IPCAM Analog: 40fps@8MP, 80fps@8MP-lite, 96fps@5MP, 192fps@5MP-lite, 240fps@4MP-lite, 320fps@3MP-lite, 240fps@1080p, 480fps@1080p-lite/720p/960H |
|||
Pre-record time | 0 -10 seconds | |||
Post-record time | 0 -60 minutes | |||
Display | Split windows | 1/4/7/9/10/13/16 | ||
Frame rate | Up to 30/25 FPS per display window | |||
Digital Zoom | X2, X4 | |||
Playback | Max frame rate | 40fps@8MP, 80fps@8MP-lite, 96fps@5MP, 192fps@5MP-lite, 240fps@4MP-lite, 320fps@3MP-lite, 240fps@1080p, 480fps@1080p-lite/720p/960H | ||
Search | Smart search, Date/time search, POS search, Camera, Alarm, Motion & Video loss | |||
Operation | Play, Fast Forward, Backward, Pause, Stop, Snapshot, etc. | |||
Storage | HDD | 2 x 3.5” SATA HDD (Up to 12TB capacity for each HDD) | ||
HDD Extension | N/A | |||
Backup | USB 2.0 x 2 ; Self playback for backup files | |||
Alarm | Set/unset | 1 contactor TTL/CMOS signal | ||
Panic | 1 contactor TTL/CMOS signal | |||
Input | 8 contact or TTL/CMOS signals | |||
Output | 2 (1 Normally Open and 1 Normally Closed relay outputs) | |||
Network | Ethernet | 1 RJ-45 10M/100M/1000M bps Ethernet connector | ||
Protocol | TCP/IP, HTTP, PPPoE, DHCP, DDNS, FTP, TSP, NTP, RTSP, UPnP, P2P | |||
Remote Users | Up to 8 users simultaneously | |||
Remote | Support Windows 10/8/7, N-streaming live view, I.E/Firefox/Chrome DVR, App for Mac/iPhone/iPad/Android phone and Tablet PC | |||
Control / POS / GPS | RS-485 | 2-pin for keyboard and/or PTZ control | ||
RS-232 | 1 D-type male connector | |||
Artificial Intelligence | Support for people and car detection (Optional, 1 USB AI stem for 2 channels detection) | |||
Reliability | System recovery | Auto power on after power loss recovery (with Watch Dog Timer) | ||
Timer | Built-in real time clock | |||
Security | Multi-level password (4 levels, up to 18 accounts) protection with authentication key for remote access | |||
Weights & Measures | Dimension / Weight | 435(W)x285(D)x55(H)mm;3.0KG(withoutHDD) | ||
Power | Source / Consumption | +12VDC , 5A / 60W Max | ||
Operating Temperature | -5°C ~ +60°C |

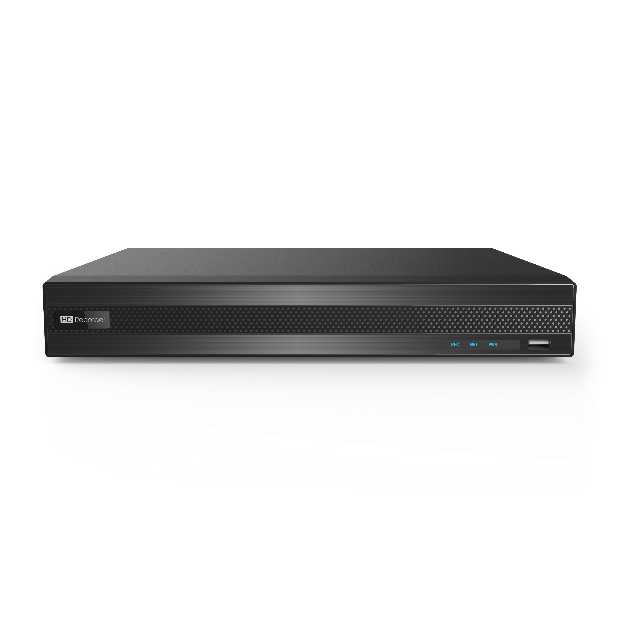

DVR
SS-3236DK
SS-3236DK
【16CH & ADPCM & 8MP】
1. Taiwan Novatek SoC
2. IP Cam support 8MP, 5MP, 1080P, 720P resolution.
3. Analog support 8MP, 8MP-Lite, 5MP, 5MP-Lite, 4MP-Lite, 3MP-Lite, 1080P, 1080P-Lite, 720P, 960H resolution.
4. ADPCM audio compression.
5. Remote Control: Support web viewer, iPhone, iPad, Android etc.
1. Taiwan Novatek SoC
2. IP Cam support 8MP, 5MP, 1080P, 720P resolution.
3. Analog support 8MP, 8MP-Lite, 5MP, 5MP-Lite, 4MP-Lite, 3MP-Lite, 1080P, 1080P-Lite, 720P, 960H resolution.
4. ADPCM audio compression.
5. Remote Control: Support web viewer, iPhone, iPad, Android etc.
