| Specification | |||
| Model | SSV-XHD-938S30 | ||
| Pick-up Element | SONY 1/2.9“CMOS IMX 323V30H | ||
| Frame Rate | 1080P@25fps / 1080P@30fps | ||
| Lens | 1.8mm Fisheye Lens | ||
| Effective Pixel | 1920(H)×1080(V) | ||
| Standard | PAL / NTSC | ||
| Day/Night Mode | External(Default)／Auto／Color／B&W | ||
| Video Setting | Contrast/Sharpness/COLOR/GAIN/DNR/Format/DWDR | ||
| White Balance | ATW/Manual | ||
| Synchronization | Internal | ||
| Electronic Shutter | Auto | ||
| Min. Illumination | 0.001 LUX@(F1.2,AGC ON), 0LUX with IR | ||
| Video Output | AHD / TVI / CVI / CVBS (Default: AHD Video Output) | ||
| Exposure | Brightness/Exposure Mode/Gain | ||
| Coaxial Cable Transmission Distance |
300 m | ||
| Twisted Cable Transmission Distance |
100 m | ||
| Language | 10 Kinds of Languages as Chinese/English etc. | ||
| OSD Menu | UTC Function | ||
| IR-LED Coverage | 18 x IR-LED, around 20M | ||
| Operating Condition | Temperature：-20°C~+60°C, Humidity：90%RH | ||
| Power Supply | DC 12V ±20% | ||

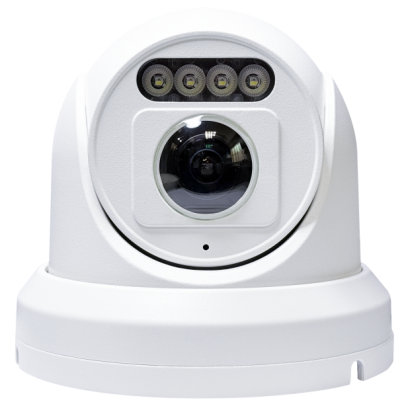

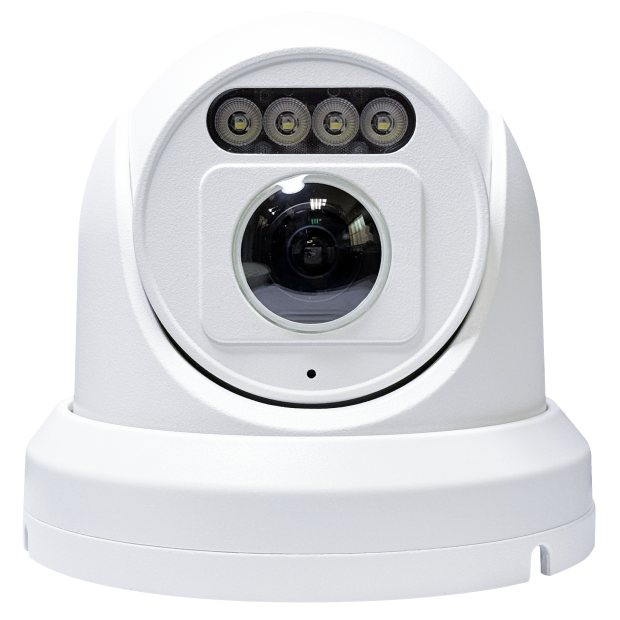

2MP Panoramic Wild Angle AHD Camera
SSV-XHD-938S30
SSV-XHD-938S30
【1.8mm Fixed Focus】
1. SONY 1/2.9” CMOS 2MP Chip
2. Coaxial cable, RJ45 twisted network wire transmission
3. UTC function
4. AHD/TVI/CVI or Analog 960H Video Output selectable
5. Built-in IR-Cut filter lens, more accurate Day/Night co-focus
6. 3D/2D noise reduction.
7. NTSC/ PAL selectable
8. Support Digital-WDR
1. SONY 1/2.9” CMOS 2MP Chip
2. Coaxial cable, RJ45 twisted network wire transmission
3. UTC function
4. AHD/TVI/CVI or Analog 960H Video Output selectable
5. Built-in IR-Cut filter lens, more accurate Day/Night co-focus
6. 3D/2D noise reduction.
7. NTSC/ PAL selectable
8. Support Digital-WDR
DETAIL
